Fenix R Racing Saildrive

You must be logged in to be able to place orders
Leadtime: 3 months after the order confirmation

EPT Saildrive: Unmatched Performance, Versatility, and Efficiency for Modern Sailing

Experience superior power and control with the EPT Saildrive propulsion system, designed for exceptional reliability and adaptability. With a dynamic power range of 7 to 37 kW and operating smoothly between 500 and 1800 RPM, it ensures precise control and optimal performance for a variety of applications. Its 48 to 100 VDC voltage range allows for seamless integration into diverse power systems.

Effortless Installation and Customization

The EPT SD Racing leg comes pre-mounted, offering a hassle-free, plug-and-play solution for quick setup in high-demand environments. For specific needs, adaptable flanges are available upon request.

Maximized Efficiency and Safety

The motor includes a pre-mounted heat exchanger, pumps, filter, controller, and PLC, all engineered to work seamlessly together for maximum efficiency. The system meets rigorous safety and quality standards with CE and EN 60034 type approval.

Enhanced Sailing Experience and Environmental Responsibility

EPT Saildrive systems are engineered to enhance your sailing experience by combining top-tier performance, efficiency, and reliability. By optimizing the connection between the motor and propeller, EPT Saildrive reduces drag and boosts thrust, ensuring a smoother and quieter ride. It delivers robust power with zero emissions, low maintenance, and minimal noise, providing instant torque for precise, responsive handling in open waters or tight marina spaces.

Designed for modern sailboats, EPT Saildrive represents the cutting edge of propulsion technology. With reduced oil resistance in the lower leg and glycol cooling in the Saildrive leg itself, it allows you to navigate freely while minimizing environmental impact. The system also boasts the convenience of no requirement for seawater intake into the boat and no need for a seawater filter and pump, further simplifying installation and maintenance.

Key Features:

  • Power: 7 to 37 kW

  • RPM: 500 to 1800 RPM

  • Voltage: 48 and 100 VDC

  • Plug-and-play solution

  • Built-in with EPT Racing Saildrive

  • CE and EN 60034 type approval

  • Adaptable flanges available on request

  • Glycol cooling in Saildrive leg itself

  • Cooling plate and control box mounted

  • No requirement of seawater intake into the boat

  • No need for seawater filter and pump

  • Capable of energy regeneration update

Power 7 to 37 kW
RPM 500 to 1800 Rpm
Voltage 48 and 100 VDC
EPT SD Racing Leg Pre-mounted
Adaptable flanges On request
Heat exchanger Pre-mounted
Pumps Pre-mounted
Filter Pre-mounted
PLC Pre-mounted
CE Certified +
Certifications CE
Additional details Plug-and- play solution
Built in with EPT Racing Saildrive
Glycol cooling in Saildrive leg itself
Cooling plate, control box is mounted
No requirement of seawater intake into the boat
No need of seawater filter and pump
Capable of energy regeneration
Title Type Size Download Updated Date
Prospekt-Saildrive-10.24-2.pdf PDF 2.79MB Download October 2024
Title Type Size Download Updated Date
  • Multibox
  • Charger
  • DC/DC Converter
  • DC/AC Inverter
  • Push Button Switch
  • Emergency Stop
  • DC Mini Generator
  • NMC Battery
  • Solid State Battery
  • BoatControl
  • Top mounted double throttle
  • Top mounted single throttle
  • Side mounted single throttle
  • Display

Multibox

Multibox

This cutting-edge marine propulsion and regeneration system offers unparalleled versatility and safety for a broad spectrum of vessels, including both monohull and multihull designs. Powering your vessel efficiently, the system is compatible with dual driver voltages of 48 VDC and 100 VDC, providing flexible integration options for diverse power setups. Comprehensive safety is built-in, with individual fuses integrated for all devices, converters, and the PLC, offering robust protection for every critical component. Streamlining your vessel's electrical infrastructure, the system consolidates all propulsion and regeneration functions into a single Multibox, significantly simplifying installation and reducing wiring complexity. Reliable and efficient communication throughout the system is guaranteed by CANBUS technology, enabling precise control and real-time data exchange. Designed for convenience, the system features an easy and fast fixing solution, ensuring rapid installation and straightforward maintenance. Moreover, the entire system is CE certified, confirming adherence to rigorous European safety, health, and environmental standards.

Details:
  • Driver Voltage capable: 48 and 100 VDC
Specifications:
  • Certifications: CE

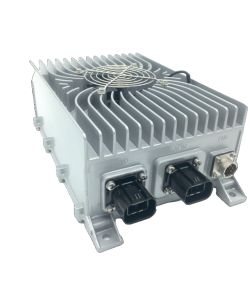

Charger

Charger

This high-performance marine battery charger delivers a maximum output power of 3.3 kW, ensuring fast and efficient battery charging even in demanding marine environments. It supports a wide input voltage range of 85 to 264 VAC and operates with a maximum input current of 16 A @ 220 VAC, making it compatible with global power standards. The charger provides a stable output voltage range of 70 to 135 VDC and a maximum output current of 35 A, ideal for a wide range of marine battery systems. Operating at a frequency range of 47 to 63 Hz, it features air-cooled thermal management and is housed in a robust, IP67-rated enclosure for complete protection against dust and water ingress. CE certified, this charger is built to meet international safety and performance standards, making it a reliable choice for both leisure and commercial marine applications.

Specifications:
  • Certifications: CE
  • IP Rating: IP67
  • Cooling method: Air-cooled
  • Max output power: 3.3 kW
  • Input voltage range: 85 ~ 264 VAC
  • Max input current: 16 A @ 220 VAC
  • Output voltage: 70 ~ 135 VDC
  • Max output current: 35 A
  • Freq. range: 47 ~ 63 Hz
  • Output power: 1.5 kW and 2 kW available
  • Output current: 10 A ~ 107 A

DC/DC Converter

DC/DC Converter

This robust DC/AC inverter is designed for demanding environments and delivers output power options of 3 kW or 4 kW. With a DC input voltage range of 70 VDC to 130 VDC and a maximum input current of 43 A, it offers efficient energy conversion for a wide range of applications. The inverter provides a stable 230 VAC output voltage with an output current of up to 13 A. It is available with either air-cooled or water-cooled configurations to suit various installation conditions. With a protection grade of IP67, it is fully sealed against dust and water ingress, ensuring reliable performance in harsh marine, industrial, or transportation settings. The inverter is CE certified and EN45545-2 approved, meeting strict safety and fire protection standards, especially for rail and public transport applications.

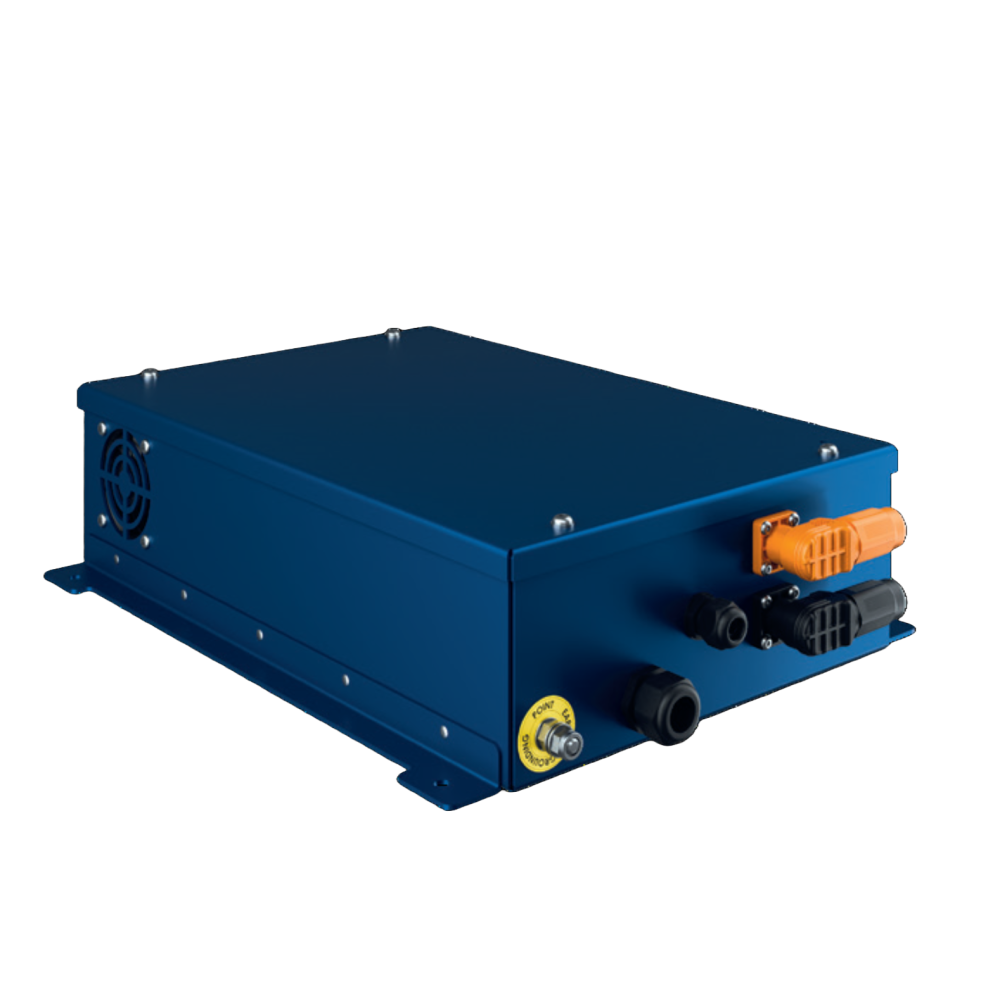

DC/AC Inverter

DC/AC Inverter

This robust DC/AC inverter is designed for demanding environments and delivers output power options of 3 kW or 4 kW. With a DC input voltage range of 70 VDC to 130 VDC and a maximum input current of 43 A, it offers efficient energy conversion for a wide range of applications. The inverter provides a stable 230 VAC output voltage with an output current of up to 13 A. It is available with either air-cooled or water-cooled configurations to suit various installation conditions. With a protection grade of IP67, it is fully sealed against dust and water ingress, ensuring reliable performance in harsh marine, industrial, or transportation settings. The inverter is CE certified and EN45545-2 approved, meeting strict safety and fire protection standards, especially for rail and public transport applications.

Specifications:
  • Certifications: CE
  • Output power: 3 kW and 4 kW available
  • Input voltage range: 70 VDC ~ 130 VDC
  • Max input current: 43 A
  • Output voltage: 230 VAC
  • Output current: 13 A
  • Cooling: Air-cooled / Water-cooled
  • Protection grade: IP67
  • Standards: EN45545-2

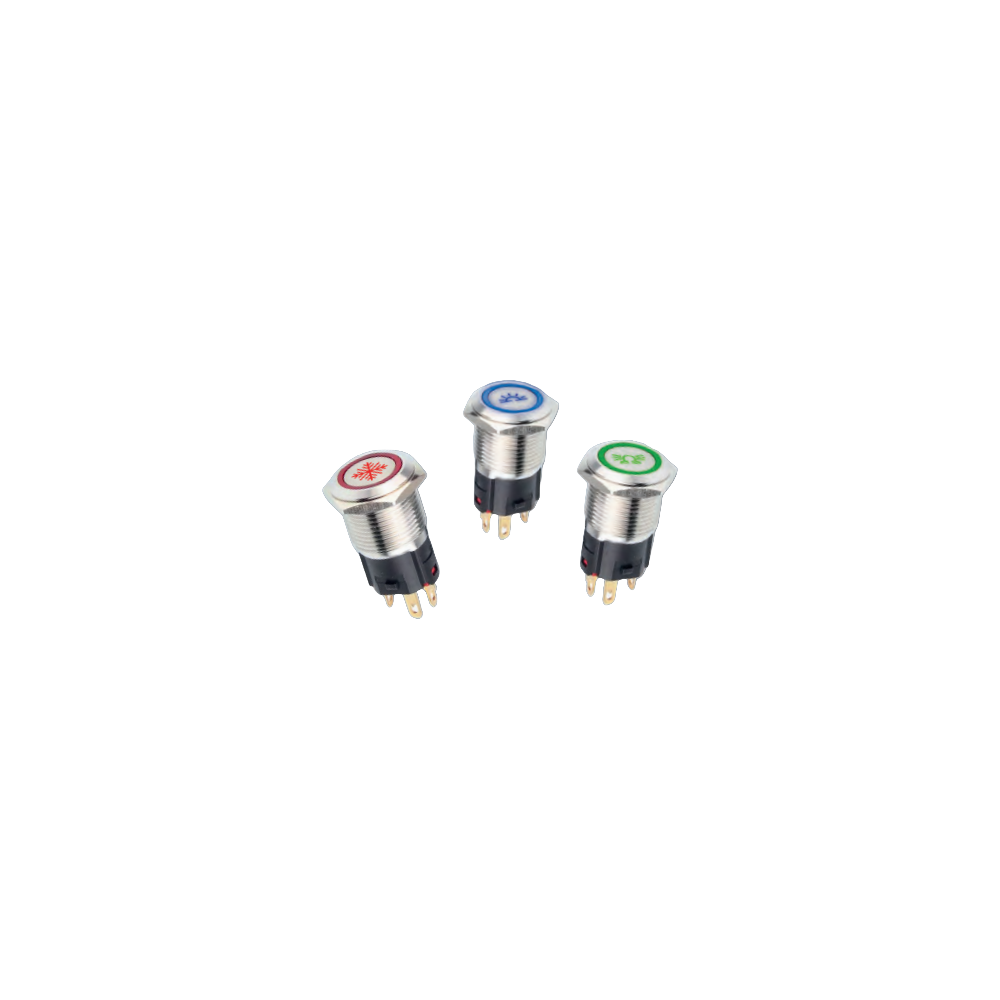

Push Button Switch

Push Button Switch

A marine push button switch is a momentary electrical control designed specifically for use in maritime environments. When pressed, it temporarily completes an electrical circuit, sending a signal to control a connected device (such as lights, pumps, or navigation equipment). Once released, the circuit returns to its original state. These switches are engineered for durability and reliability at sea, featuring: Waterproof and corrosion-resistant housing (commonly rated IP67 or higher) to withstand exposure to saltwater, humidity, and spray. Robust construction to handle vibration and impact in high-motion marine environments. Backlit or illuminated options for visibility in low-light or night conditions. Available in locking or momentary styles, allowing for customized control depending on application. Used in control panels, dashboards, or remote stations aboard sailboats, yachts, workboats, and commercial vessels. Ideal for critical functions like bilge pumps, horn activation, engine start/stop, and more, marine push button switches offer reliable, weatherproof control when it matters most. Other LED colour is available on request. Other icons are available on request. Check our website for icons description and update.

Specifications:
  • Diameter: 22 mm (19 mm is available on request)
  • Max. Voltage: 250 VAC, 50 VDC
  • Led Voltage: 9-36 VDC
  • Max. Current: 5 A (20 A on request)
  • Single Led Colour: white
  • Double Led colour: red & green, red & blue
  • Function: latching or momentary

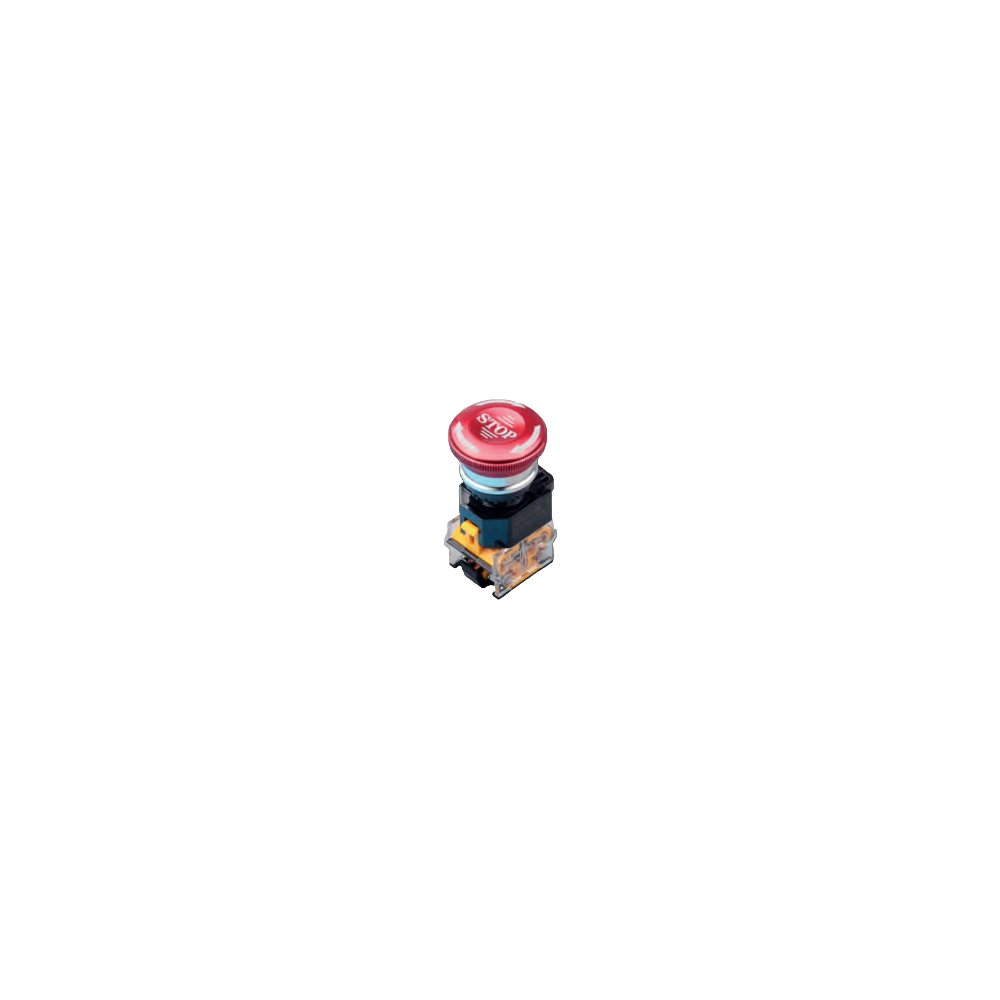

Emergency Stop

Emergency Stop

A marine emergency stop push button (commonly known as an E-Stop) is a fail-safe control switch designed to immediately shut down equipment or systems in emergency situations on vessels. These safety-critical devices are specifically tailored for harsh marine conditions and are a key component of onboard safety systems. Key features include instant shutdown to prevent injury or equipment damage, weatherproof construction rated IP65–IP69K for protection against saltwater and harsh weather, high visibility with red buttons on yellow backgrounds, and a latching mechanism that remains engaged until manually reset. Made with marine-grade, corrosion-resistant materials suitable for long-term exposure to moisture, salt, and UV light. Typically installed on engine panels, control stations, helm consoles, or near hazardous equipment. Super metal texture with a high-end appearance enhances durability and aesthetics. A vital safety component for commercial vessels, leisure craft, and industrial marine applications.

Specifications:
  • Max. Voltage: 250 VAC
  • Max. Current: 8A
  • Certifications: IP65
  • Variants: NO NC / NO NO / NC NC

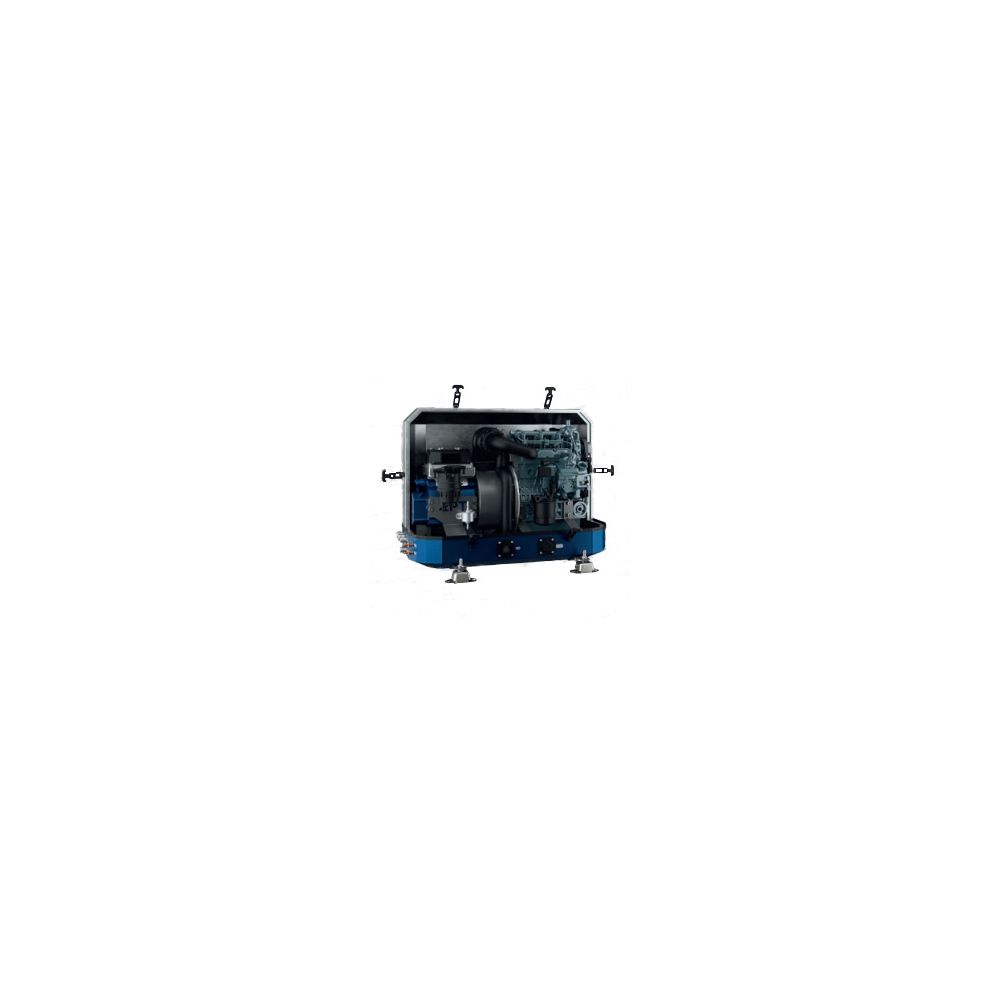

DC Mini Generator

DC Mini Generator

Flexible. Lightweight. Built for Demanding Environments. Our compact marine-compatible generator is a powerful and flexible solution designed to meet the evolving demands of electric and hybrid marine systems. Whether used for propulsion support, onboard energy generation, auxiliary systems, or integrated control and monitoring, this unit delivers reliable performance in a space-saving, customizable package. With power output up to 17 kW and an adaptable voltage range of 48–800 VDC, it supports a wide range of vessel types and onboard electrical systems. Its ultra-compact form factor and lightweight construction (under 110 kg) make it ideal for limited-space installations without compromising power or durability. Key features include variable speed operation, optional sound enclosure, and fully customizable air intake and exhaust openings to suit different layouts and ventilation requirements. For added safety, it also comes with a quick-access fire extinguishing port for rapid emergency response.

Specifications:
  • Power: up to 17 kW
  • RPM: 800 - 3000 RPM
  • Voltage: 48 - 800 VDC
  • Additional details: Array

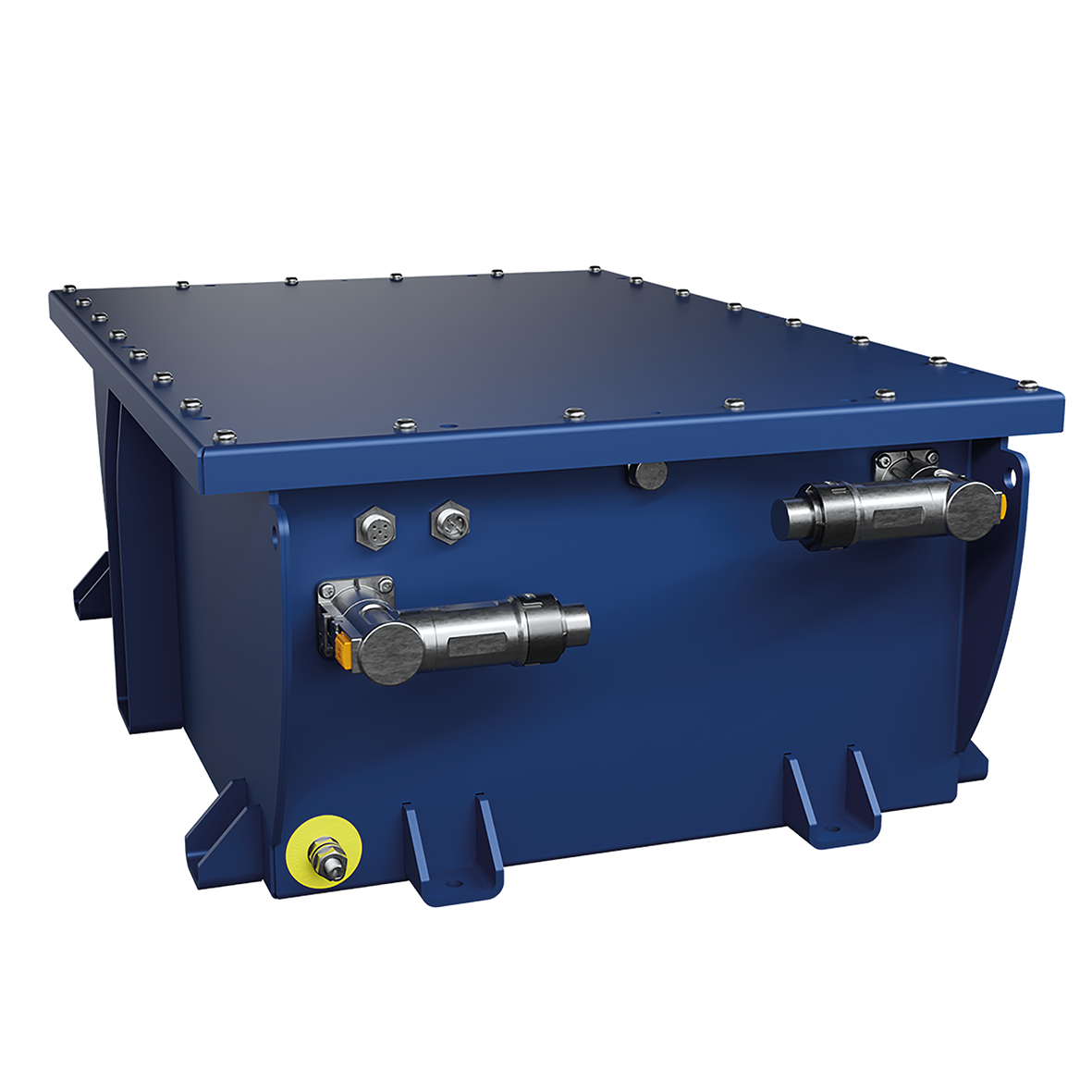

NMC Battery

NMC Battery

High-Performance Marine Battery: Power, Durability & Scalability. Engineered for the demanding marine environment, this advanced battery delivers reliable and efficient power to enhance your on-water experience. Utilizing cutting-edge NMC (Nickel Manganese Cobalt) battery chemistry, it offers an exceptional balance of energy density and longevity. With a nominal voltage of 103V and a robust nominal capacity of 177 Ah (18.2 kWh) at 25°C, this battery provides substantial energy for extended cruising, onboard electronics, and demanding auxiliary systems. Built to withstand the elements, its durable aluminum body and IP65 protection class ensure superior resistance to water, dust, and harsh marine conditions, guaranteeing peak performance even in challenging environments. Experience peace of mind with an impressive cycle life of 2600 cycles at 80% Depth of Discharge (DoD), offering years of dependable service and consistent power delivery. Weighing just 95 kg, it provides a high power-to-weight ratio, optimizing space and performance on your vessel. Furthermore, its scalable design allows for parallel and series connections, providing unparalleled flexibility to customize your power system to meet any specific energy requirements, from small tenders to large yachts. Choose this battery for a powerful, resilient, and adaptable energy solution on the open water.

Specifications:
  • Chemistry: NMC
  • Cycle Life @ 80% DoD: 2600
  • IP Rating: IP65
  • Battery Weight: 95 kg
  • Nominal Capacity @ 25°C: 177 Ah
  • Nominal Energy @ 25°C: 18.2 kWh
  • Scalable: Parallel and series
  • Nominal Voltage: 103 V
  • Body Material: Aluminum

Solid State Battery

Solid State Battery

48V Solid-State Battery for Boats – 14.3 kWh Capacity. Set sail with confidence and unmatched power with this 48V solid-state battery, designed specifically for marine environments. With a 14.3 kWh capacity, this battery ensures you have the energy you need to keep your boat running smoothly, whether you’re cruising along the coast or powering your onboard systems. Why This Battery is Perfect for Your Boat: Marine-Grade Reliability: Designed to withstand the toughest conditions on the water, this battery is built for durability. Its IP65 rating means it’s resistant to both dust and water, making it perfect for salty, wet, and humid marine environments. With a stainless steel case, this battery is also corrosion-resistant, ensuring a long lifespan in the harshest conditions. Impressive Power Capacity: With 14.3 kWh, this battery provides more than enough energy to power your boat’s propulsion system, onboard electronics, and more. Whether you're cruising for hours or anchored for a weekend getaway, this battery ensures you have the energy you need to enjoy your time on the water. Extended Performance: You don’t want to worry about replacing your battery after every trip. This battery offers 10,000 cycles at 80% Depth of Discharge (DoD), ensuring a long-lasting, high-performance power solution for many years of boating adventures. High Charge and Discharge Rates: With 220A max continuous charge and 330A max continuous discharge, this battery can handle high-demand power usage when you need it most—whether it’s recharging on the go or powering heavy-duty marine equipment. Compact & Powerful Design: At 810 x 425 x 250 mm and weighing 102 kg, this battery strikes the perfect balance between size and power. It’s compact enough to fit into your boat’s storage system while providing all the energy you need for a smooth, long-lasting voyage. Certified & Safe: With CE and UN38.3 certifications, this battery is guaranteed to meet global safety standards, so you can trust it to keep your boat powered safely. Plus, it comes with a 2-year warranty for added peace of mind.

Specifications:
  • Certifications: CE, ROHS, UN38.3
  • Chemistry: LFP
  • Nominal Voltage: 51.2 VDC
  • Cycle Life @ 80% DoD: 10000
  • Max Continuous Charge: 220A / 0.8 C
  • Max Continuous Discharge: 330A / 1.2 C
  • Battery Case: Stainless Steel
  • Dimensions (LWH): 810 x 425 x 250 mm
  • IP Rating: IP65
  • Capacity: 14.3 kWh
  • Warranty: 2 years
  • Battery Weight: 108 kg
  • Standards: IEC 62619, IEC 62620, ISO 23625:2021
  • Nominal Capacity @ 25°C: 280 Ah
  • Nominal Energy @ 25°C: 14.33 kWh
  • Scalable: Parallel only
  • Body Material: Aluminum
  • Top Lock Lid Material: Stainless Steel

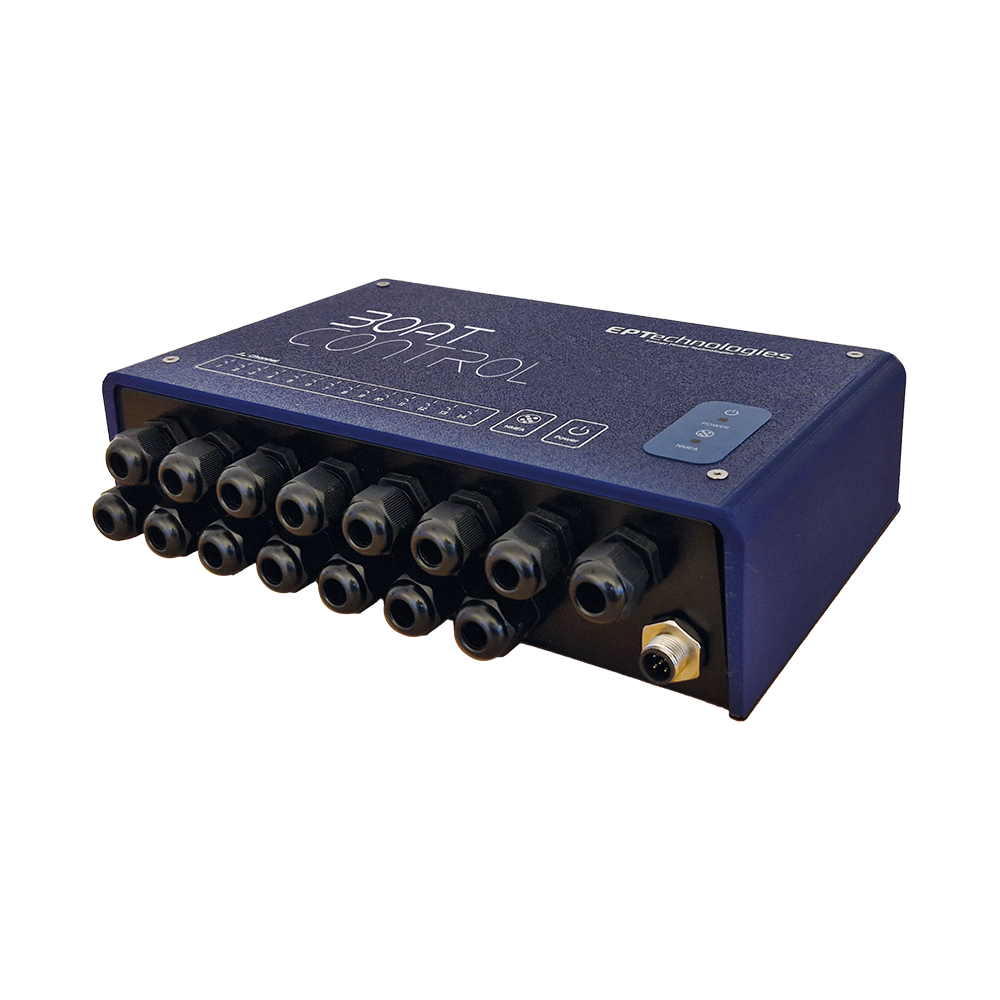

BoatControl

BoatControl

Experience the Future of Marine Automation – Stay Connected Anytime, Anywhere! Take full command of your boat’s equipment no matter where you are. BoatControl is a cutting-edge marine automation solution designed to simplify vessel management. With 14 versatile channels, you can seamlessly connect and control any onboard equipment while integrating effortlessly with your existing NMEA2000 systems. BoatControl is more than just a tool—it’s your key to effortless control and peace of mind. Whether you're on board or miles away, you can monitor real-time data, fine-tune settings, and keep your boat running at its best—all through the BoatControl app. Leave behind the hassle of manual monitoring and step into the next generation of marine automation. Managing your boat has never been easier with the BoatControl app. Available on Android, iOS, and web browsers, it ensures seamless communication and customization through Bluetooth, Wi-Fi, and the Cloud. Effortlessly set up and control connections remotely, manage contact points, and assign functions to buttons—all from the palm of your hand.

Specifications:
  • Dimensions (L x W x H): 253 x 158 x 61 mm
  • Power Supply: 9 to 30 VDC
  • Normal Power Consumption: 3 W, max 6.5 W
  • Peripherals: Channels: 14 contacts 10 A, max. load 100 A, Ports: 5-pin for NMEA 2000
  • Connectivity: Bluetooth, Wi-Fi
  • Status Indicators: Blue for power, yellow for NMEA 2000
  • Orientation: Vertical / Horizontal
  • Mounting: 225 x 100 mm with Ø5 mm mounting hole
  • Certifications: CE, ROHS

Top mounted double throttle

The Top Mounted Double Throttle provides dual independent control levers in a single compact assembly, ideal for twin-engine or redundant throttle setups. Crafted from marine-grade stainless steel and sealed against the elements, it ensures years of corrosion-free performance. The ergonomic top-mount design keeps both levers within easy reach on your control console, while a durable CAN-enabled M12 interface and precision potentiometers deliver instantaneous, accurate feedback to your propulsion system via a 5 V DC input. The 18 mm CAN hole size fits standard bulkhead connectors, and the robust 3.8 kg unit mounts securely with minimal flex under load.

Specifications:
  • Voltage: 5 V DC
  • Material: Stainless steel
  • CAN hole size: 18 mm
  • CAN Cable: M12
  • Weight: 3.8 kg

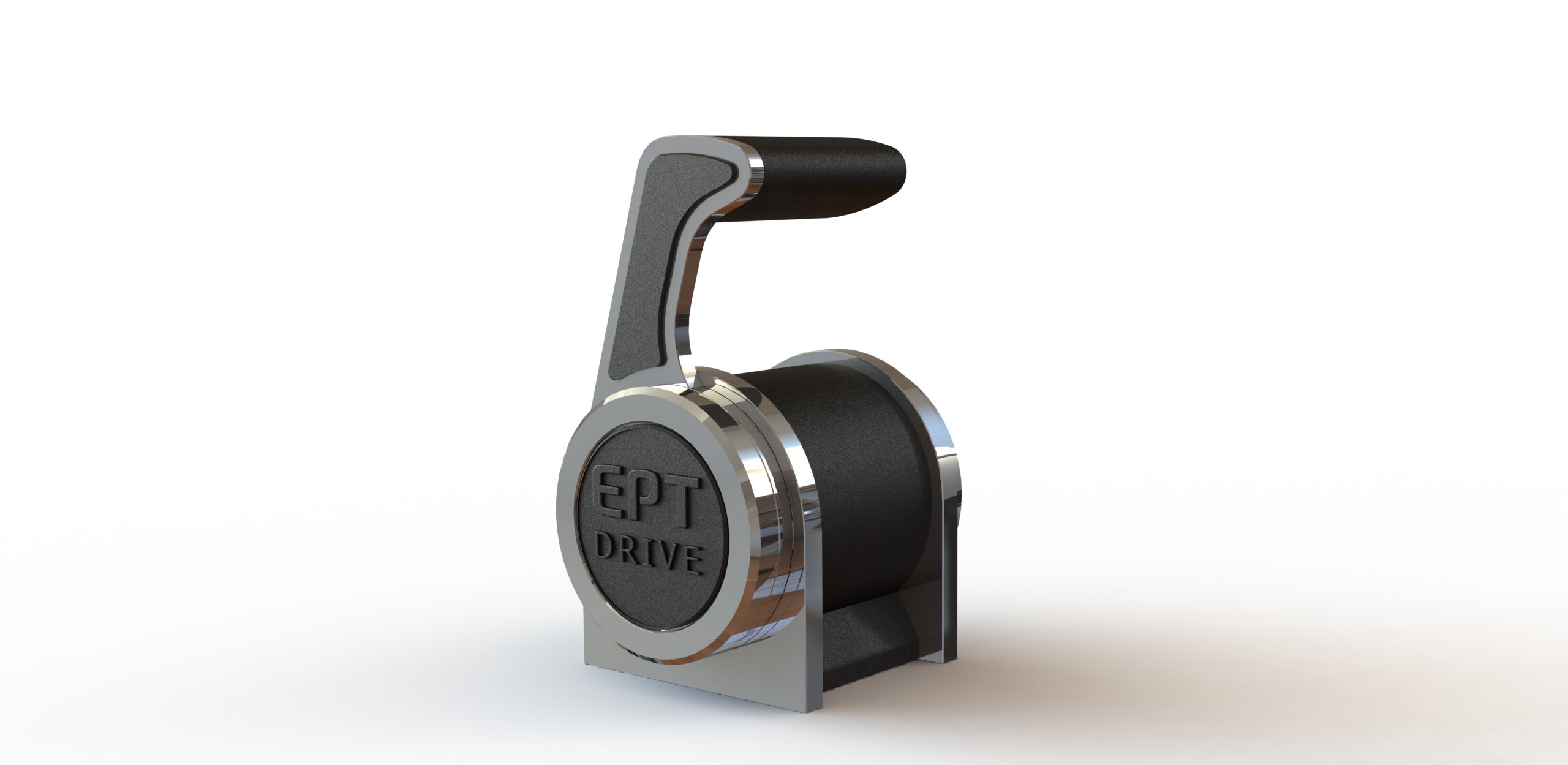

Top mounted single throttle

Top mounted single throttle

Compact electronic throttle lever engineered for hybrid and fully electric marine drivetrains, delivering smooth zero-lag control from idle to full ahead. Built from marine-grade stainless steel with hall-effect sensing, pre-configured CANopen interface, IP67-sealed M12 connector, and corrosion-proof construction, it offers precise maneuverability, plug-and-play integration, and long-term reliability at sea.

Specifications:
  • Voltage: 5 V DC
  • Material: Stainless steel
  • CAN hole size: 18 mm
  • CAN Cable: M12
  • Weight: 2.3 kg

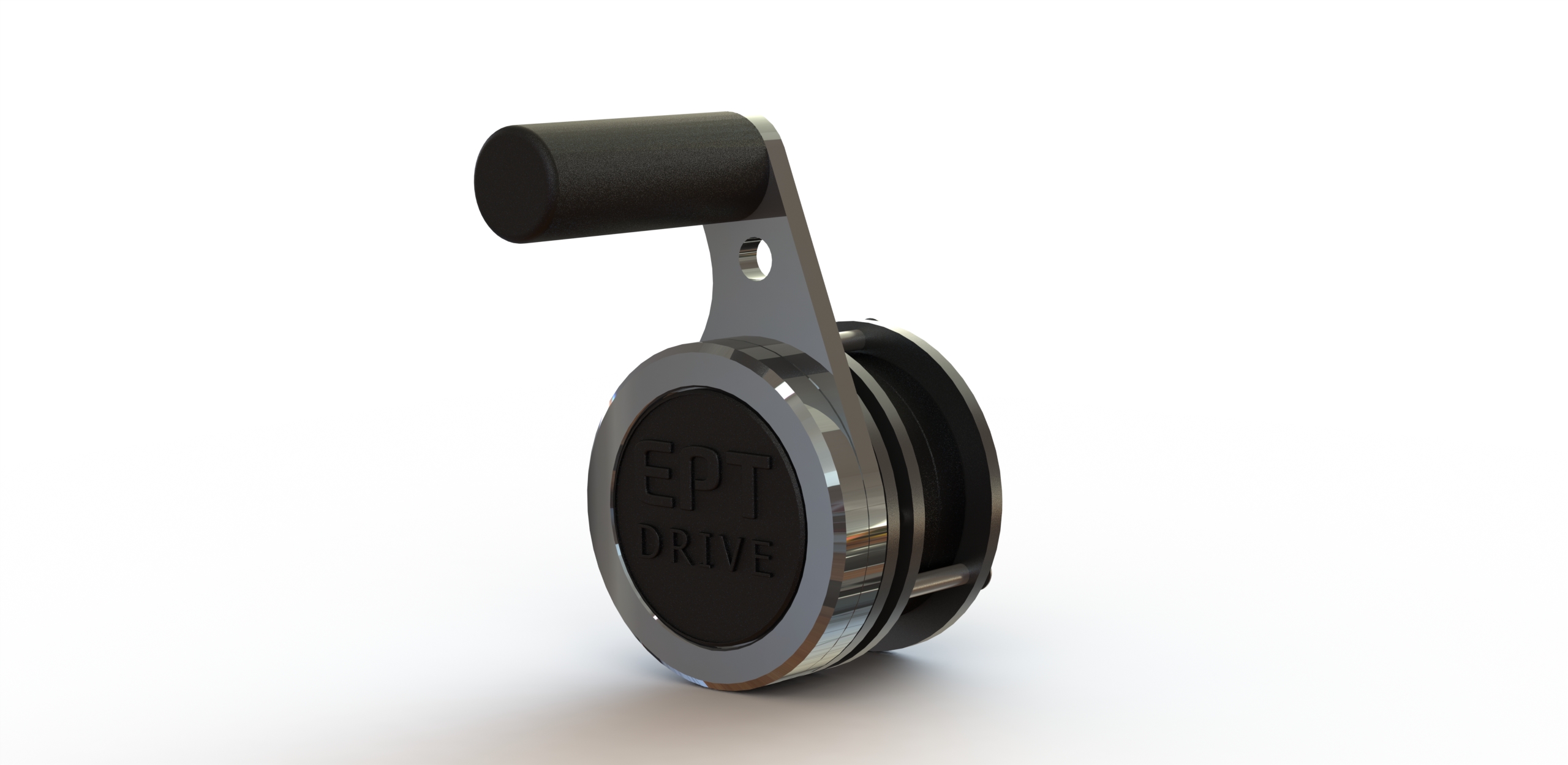

Side mounted single throttle

Side mounted single throttle

The Side-Mounted Single Throttle delivers precise, reliable control over your vessel’s speed in demanding marine conditions. Its compact side-mount design keeps your cockpit clean and positions the ergonomic lever at your fingertips for smooth adjustments. Constructed from high-grade stainless steel with marine-grade sealing, it resists corrosion and wear, ensuring years of dependable use at sea. Internally, a high-precision potentiometer and CAN-enabled M12 interface provide instant, accurate feedback to your propulsion system via a simple 5 V DC input. The 65.2 mm mounting hole pattern allows straightforward installation on bulkheads or control panels, and the lightweight 1.1 kg assembly adds minimal weight above deck.

Specifications:
  • Voltage: 5 V DC
  • Material: Stainless steel
  • Mounting hole: 65.2 mm
  • CAN Cable: M12
  • Weight: 1.1 kg

Display

The Raymarine Axiom 9 is a high-performance multifunction display featuring a bright, ultra-responsive capacitive touchscreen and powerful built-in LightHouse 3 operating system. Designed for seamless integration with all major navigation, radar and sonar technologies, it offers intuitive controls, fast chart rendering and advanced networking over Ethernet, Wi-Fi and NMEA 2000. Its lightweight, IPX6/7-rated marine-grade housing ensures reliability in the harshest offshore conditions.

Specifications:
  • Screen size: 9 inch
  • Resolution: 1024 × 768 px
  • Brightness: 1000 cd/m²
  • Touchscreen: Multi-touch capacitive
  • Operating system: LightHouse 3
  • Networking: Ethernet, Wi-Fi, NMEA 2000
  • Power consumption: < 15 W
  • Weight: 1.8 kg
  • Waterproof rating: IPX6/7
